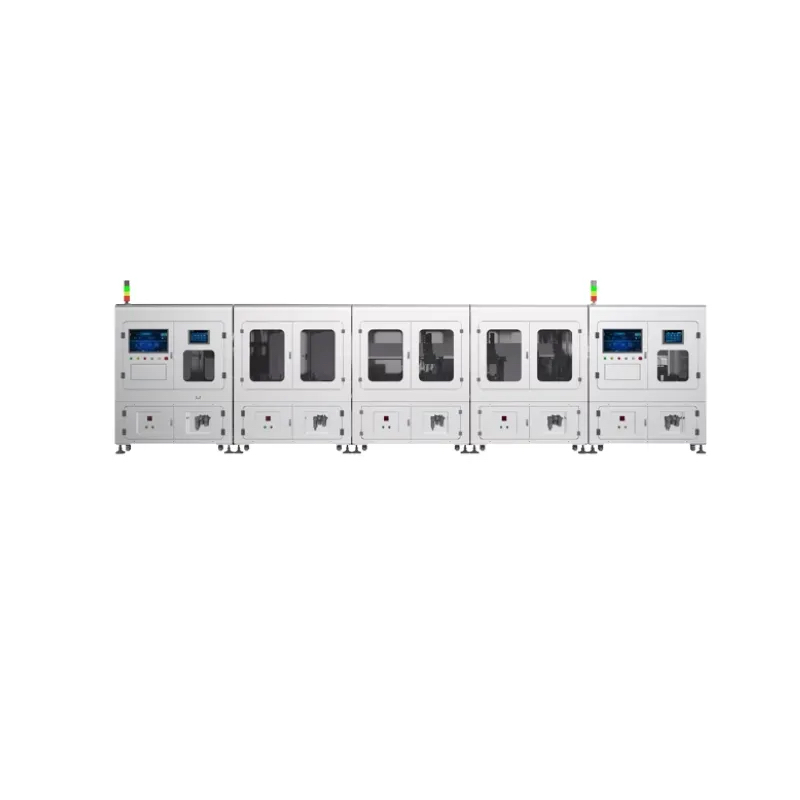

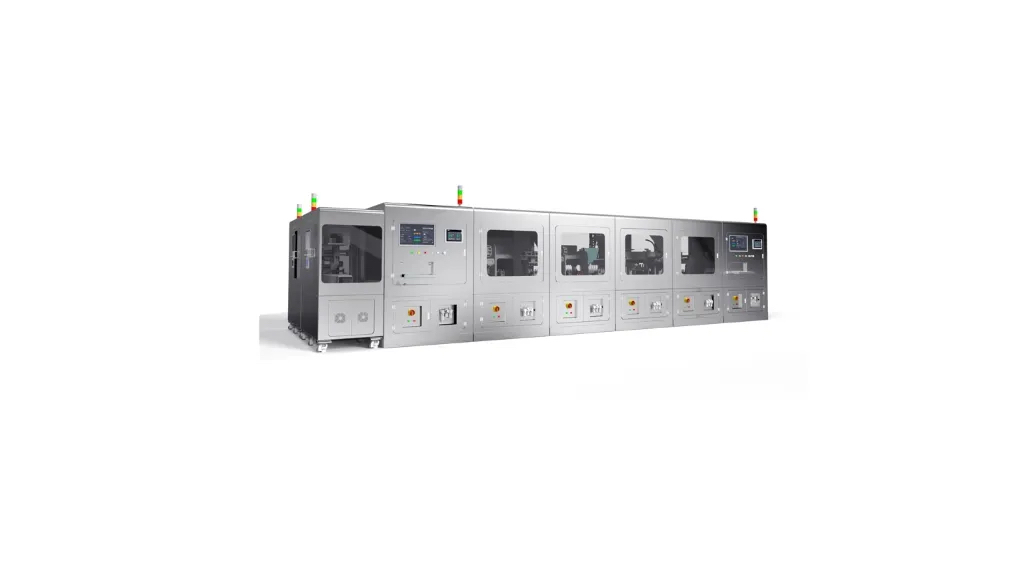

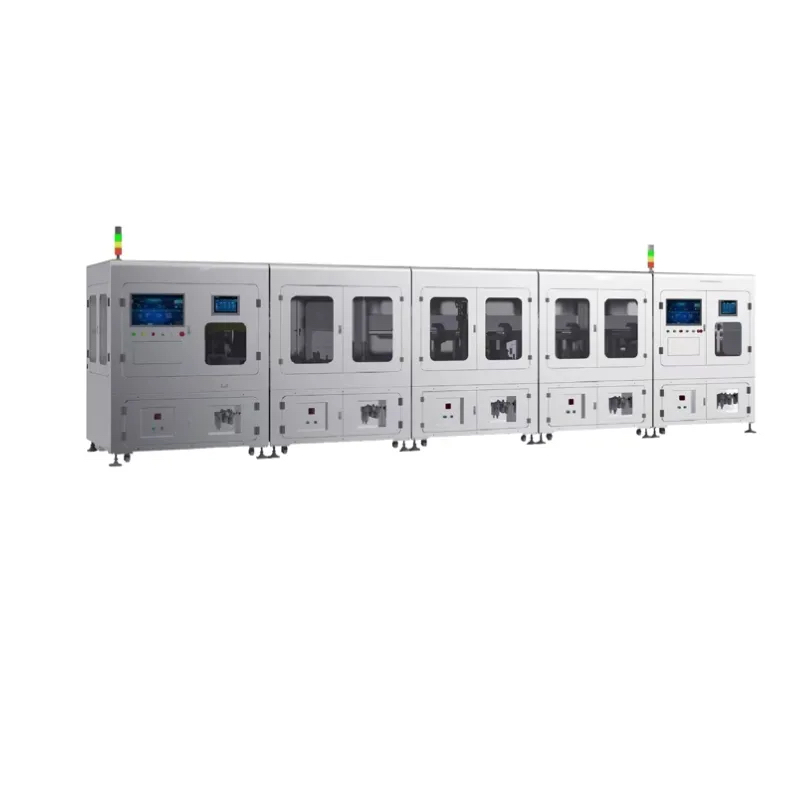

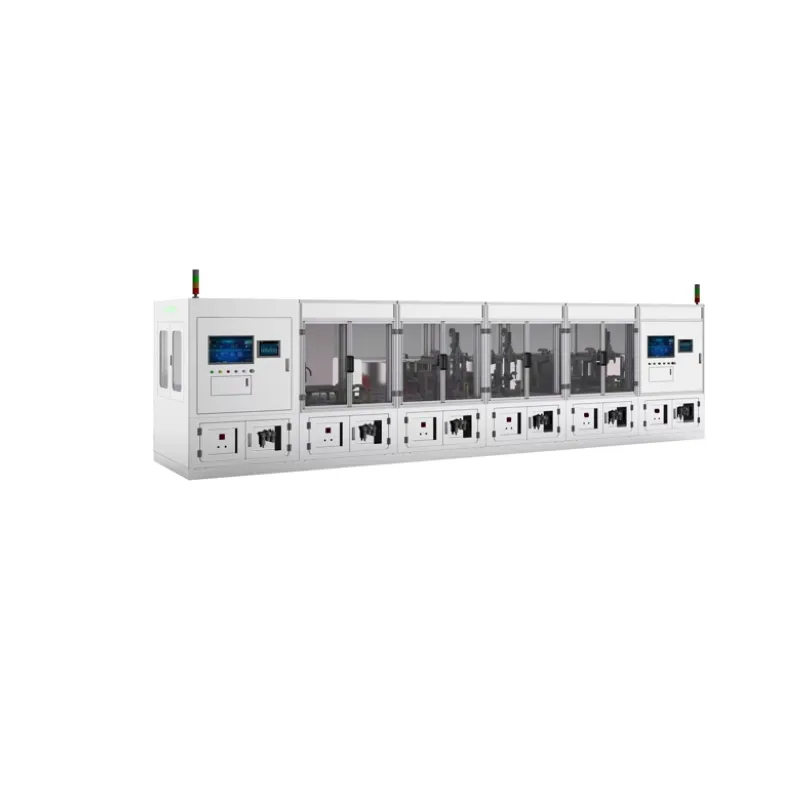

Description
| Parameter. | |||
| Outer Dimensions | 11000 mm* 4500 mm*2200 mm | Loading and Unloading Method | Automatic |
| Assembly speed | > 100 pcs/minute | Software Control Method | Siemens PLC |
| Input Air Pressure | ≥0.6 MPa | Software Human-Machine Interaction | Wirantone Touch Screen |
| Input Voltage | AC 220V,50 Hz | Safety Protection | Software interlock+safety door+emergency stop switch |
| Data Detection Method | Pressure Sensor | Operating Temperature | Between 15C and 35℃ |
| Finished Product Inspection Method | CCD | Operating Humidity | Between 30%and 75% |
| Pass Rate | ≥99.2% | ||
| Equipment Advantages | |||
| The production line uses fully automatic loading and unloading,achieving a high degree of automation. | |||
| Utilizes HMI,facilitating on-site adjustment of production parameters and process data. | |||
| Employs start modules and sensors to realize actions at each workstation,simplifying control. | |||
| Work fixtures at each station are transferred via a circular line,ensuring fast part transfer and high efficiency.The product assembly pass rate is 99.2%(verified by a third-party company),indicating high equipment efficiency. |
|||
| Sensors are used to identify the positions of each workpiece,facilitating system database tracking of information.Compared to manual operations,labor costs are significantly reduced. | |||
| A robotic arm is used for reagent supply,resulting in a short loading CT time. | |||
| PLC controls the logical actions of each station on the entire line,ensuring good stability. |
