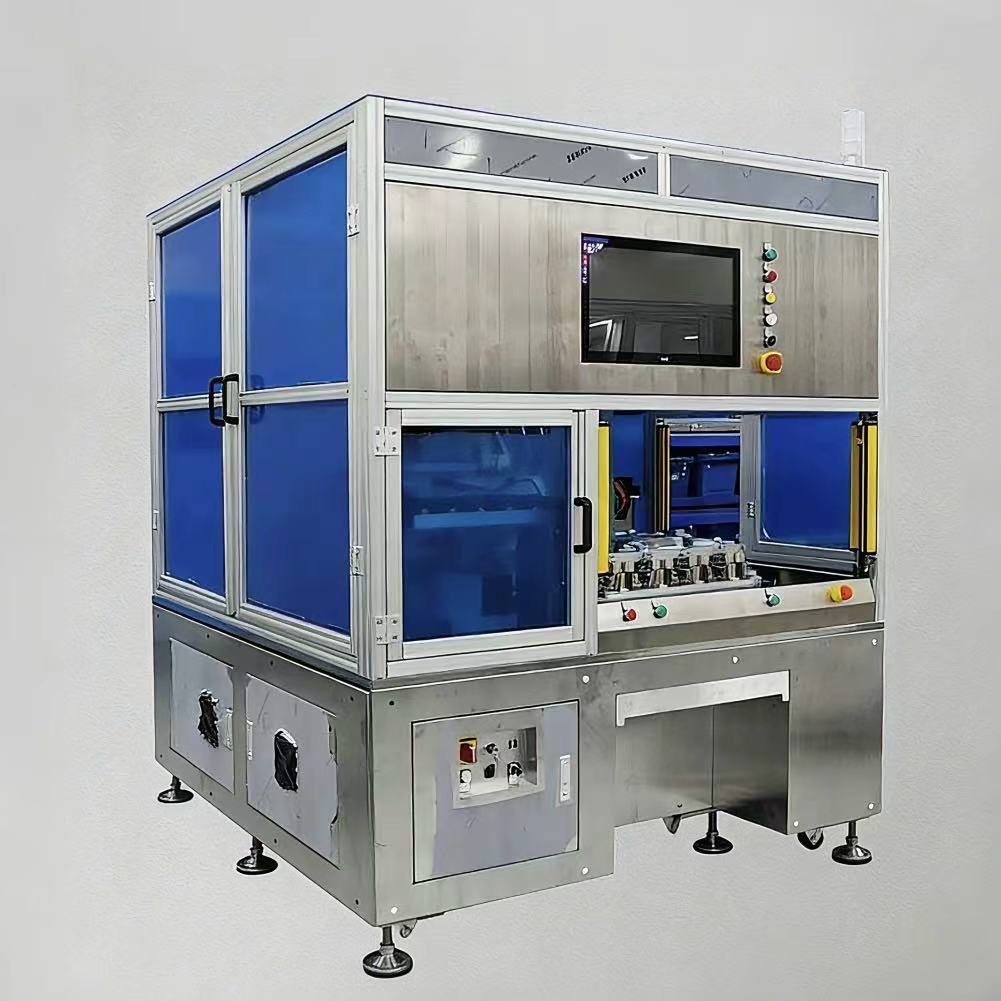

• Our auto injector pen assembly platform is engineered for high-efficiency operational performance, achieving an assembly speed of 8 pcs / 28s. Operating on a continuous working system, the equipment maintains a pass rate of > 98%, ensuring stable and reliable output for large-scale medical device manufacturing.

• For unmatched precision and control, the system utilizes a Keyence PLC control architecture and a Wirantone touch screen HMI for seamless human interaction. It features a high-accuracy scale with 0.001g precision and an integrated pressure sensor for rigorous detection, ensuring every pen injector meets exact specifications.

• This auto injector pen system is designed for controlled environments, maintaining an internal cleanliness class of < 100,000. It operates optimally at 20 ± 5°C with 30%–60% humidity. The physical unit measures 910 mm * 1420 mm * 1900 mm and requires AC 220V 50Hz power and air pressure of ≥ 0.6 MPa.

• Safety is integrated through a comprehensive protection suite, including a safety light curtain, dual start buttons, safety door locks, and an emergency stop mechanism to protect operators during the pen injector assembly process.
